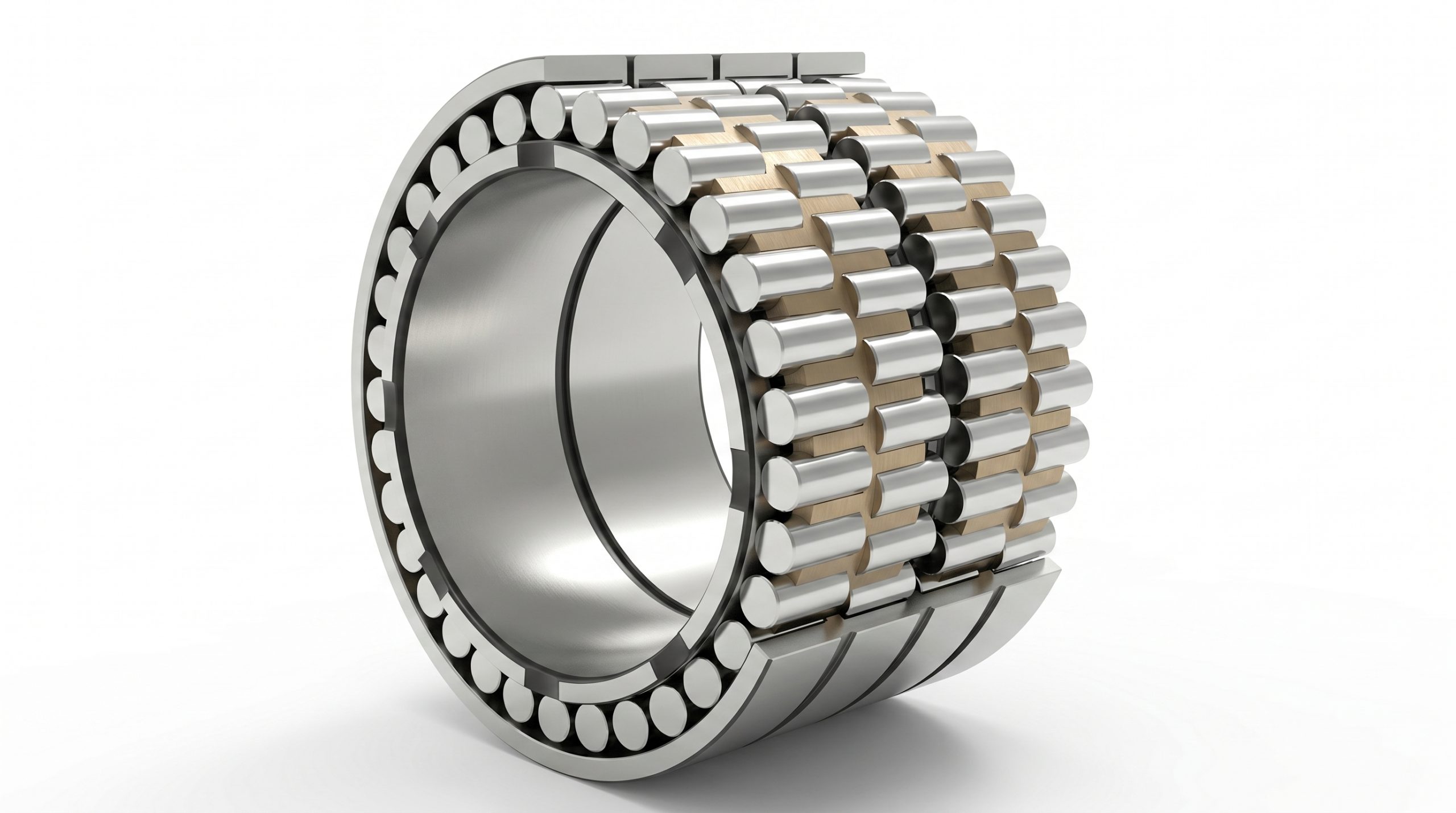

Cylindrical roller bearings
Catalog pages 98-207.
Product range
Rolling mill bearing families from the Stanley catalog.
The product structure now follows the catalog taxonomy: cylindrical roller, taper roller, backing, spherical roller, radial ball, thrust, slewing, continuous casting and spherical plain bearings.
Product navigation
Choose the correct catalog family first.
Each family below opens a support popup and links into the exact RFQ path.
Taper roller bearings
Catalog pages 208-273.
Backing bearings
Backing bearings, also referenced as Sendzimir bearings, appear in catalog pages 274-277.
Request review
Spherical roller bearings
Catalog pages 278-307.
Radial ball bearings
Catalog pages 308-351.
Thrust roller bearings
Catalog pages 352-373.
Slewing and special bearings
Catalog pages 374-395.
Catalog dimension sample
FC four row cylindrical roller bearing data example.
Exact sizes should be confirmed from the PDF table or by RFQ. This sample shows the level of detail buyers should provide.
| Bore d mm | D mm | B mm | Fw mm | Cr KN | Cor KN | New designation | Old designation |
|---|---|---|---|---|---|---|---|
| 80 | 115 | 108 | 90 | 284 | 656 | FC1623108 | - |
| 90 | 140 | 70 | 105 | 239 | 385 | FC182870 | 672718 |
| 100 | 135 | 80 | 110 | 176 | 425 | FC202780 | - |
| 110 | 150 | 80 | 122 | 200 | 520 | FC223080 | - |
| 120 | 165 | 87 | 134.5 | 374 | 745 | FC243387 | - |
| 130 | 175 | 90 | 143 | 291 | 783 | FC263590 | - |
Before selecting
Do not choose by bearing image alone.
The catalog expects type, code, dimension, speed, precision, clearance, preload, material and fits to be reviewed before selection.
| Required input | Why it matters |
|---|---|
| Type and code | Identifies bearing family, structure, bore and suffix conditions. |
| Principal dimensions | Confirms d, D, B, Fw and radius limits for correct interchange. |
| Load rating | Cr and Cor values guide suitability for mill duty. |
| Application position | Roll, locating, screw-down or auxiliary equipment requirements differ. |
